Highly Flexible Control Drag Chain Cable Servo Motor Cable

シリアルコード : A0310010S 製品コード : Servo cable-PVC

Applications:

This cable is designed for use across a wide range of technical and operational environments, including:

Machine tool production

Complete equipment installation engineering

Power stations

Air-conditioning systems

Heating systems

Refrigeration equipment

Office automation equipment

Data processing systems

Other related industrial, commercial, and infrastructure applications

Its construction ensures reliable performance in fixed installations and controlled dynamic conditions where medium mechanical stress, temperature variations, and standard environmental factors are present.



Key Properties:

Designed for connecting frequency converters and servo motors in demanding automation applications. Its highly flexible construction allows continuous flexing in moving machine parts and within cable carriers.

Suitable for dry, damp, harsh, and oily industrial environments

Approved for outdoor use

Remains flexible down to -5°C

Built for continuous dynamic motion in cable chains and robotic systems

Ideal for applications requiring durability, oil resistance, and reliable performance under mechanical stress and varying environmental conditions.

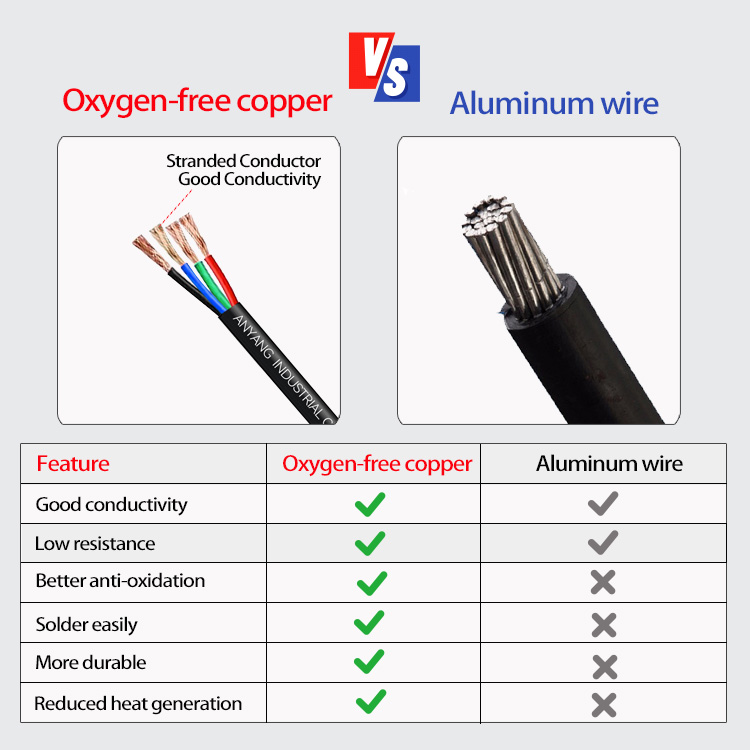

Conductor material

Bare Copper (according to DIN EN 60228)

Conductor design

IEC 60228 class 6

Core identification

Colors

Core insulation

PVC

Core stranding

Cores wound with an optimised pitch length.

Shielded

No

Outer jacket

PVC

Outer jacket color

Black RAL9005

Orange RAL2003

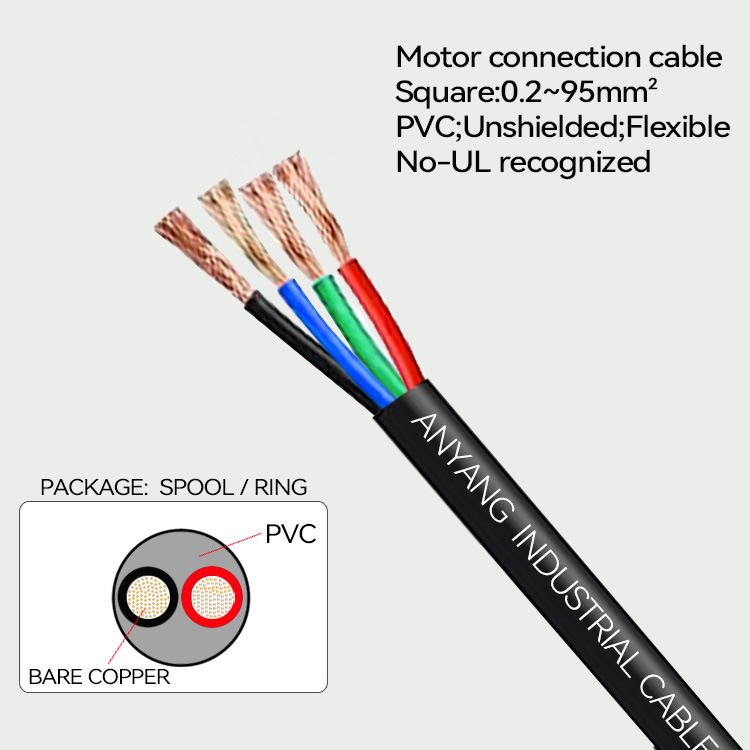

Product type

Motor connection cable

Servo cable

Application area

Flexible

Fixed Installation

Nominal voltage

<0.5mm²:U0/U 300/300V

0.5mm²-4.0mm²:U0/U 300/500V

≥4.0mm²:U0/U 450/750V

Test voltage

<0.5mm²:1500V

0.5mm²-4.0mm²:2000V

≥4.0mm²:2500V

Temperature, fixed

-15°C to +70°C (according to DIN EN 50305)

Temperature, flexible

-5°C to +70°C (according to DIN EN 50305)

Min. bend radius, fixed

6 x OD

Min. bend radius, flexible

10 x OD

Flame retardant

According to IEC 60332-1-2, Cable Flame, VW-1, FT1, FT2/Horizontal Flame

Lead-free

According to 2011/65/EU (RoHs-II/RoHS-III)

NFPA

According to NFPA 79-2018

PTFE-free

The design of these products does not contain PTFE

PWIS-free

According to VDMA 24364-B2-L

REACH

According to (EC) No. 1907/2006 (REACH)

Silicone-free

According to PV 3.10.7 – status 1992

UV resistance

According to UL sunlight resistant

Laboratories and Test Centers

In our laboratories, we evaluate the long‑term effects of environmental factors — including UV exposure, rain, ozone, seawater, oils, and cleaning agents — on the materials used in our products.

Within our dedicated test facilities, we conduct rigorous performance assessments such as:

  • Electrical transmission and signal integrity verification
  • Service life and endurance testing
  • Continuous load validation under demanding conditions
  • Fire behavior and flame‑resistance analysis

These comprehensive tests directly inform the design and manufacturing of future Anyang® products.  Our multi‑stage validation processes ensure not only compliance with industry standards and legal requirements, but also support our commitment to sustainability and environmental regulations — including REACH and RoHS — through verified material safety and product reliability.



Validated Through Rigorous Testing

Not all tests deliver the same level of assurance.  Only the most demanding evaluations can verify true performance under real‑world conditions.  That is why every product and material undergoes stringent validation in our specialized testing centers.

We assess practicability, durability, and compatibility across diverse application environments—ensuring that each solution meets the precise needs of our customers.  Upholding this commitment is a responsibility we take seriously: to deliver on our promise of consistent, reliable, and high‑quality connectivity.

  • RoHs 2.0

    RoHs 2.0

  • Reach

    Reach

  • ISO 9001

    ISO 9001

  • UL

    UL

  • TÜV

    TÜV

  • VDE

    VDE
