YGC / YGG Silicone cable Stranded Tinned Copper Wire -60~200℃ degree C

シリアルコード : A0620100 製品コード : Silicone cable

Applications:

High Quality Ultra Flexible Soft Silicone Rubber Copper Wire! Super Low Impedance,Highly Efficient!

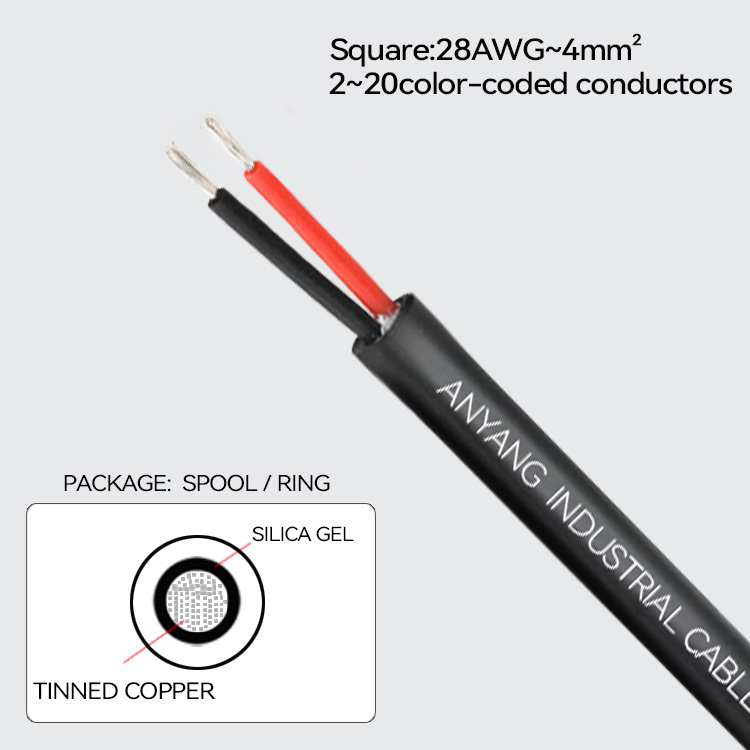

The copper strands are tinned,protecting them from corrosion and making it easier to solder.

They are constructed with premium silicone rubber insulation. High temperature resistance 200 degree C,Low temperature resistance,in extreme cold -60 degree C.Rated Voltage: 600 volts.

Silicone wire are widely used for model planes,model cars,model ships,lamps,household appliances,electric heating appliances,meters,instruments,motor and digital fields.



Key Properties:

Important Notice: Adequate Ventilation for Silicone Cables

The mechanical properties of silicone cables may begin to degrade prematurely at temperatures above +100°C if installed in areas with inadequate airflow or enclosed, non‑ventilated spaces.

To ensure long‑term performance and reliability, it is essential to provide sufficient ventilation in the installation environment.

Proper airflow helps dissipate heat and maintains the cable’s structural integrity under continuous thermal load.

Conductor material

Tinned Copper (according to DIN EN 60228)

Conductor design

IEC 60228 class 6

Core identification

Colors

Core insulation

Silicone

Core stranding

Cores wound with an optimised pitch length.

Outer jacket

Silicone

Outer jacket color

Black RAL9005

Product type

Installation cable

Power and control cable

Application area

Fixed Installation

Nominal voltage

<0.5mm²:U0/U 300/300V

0.5mm²-4.0mm²:U0/U 300/500V

≥4.0mm²:U0/U 450/750V

Test voltage

<0.5mm²:1500V

0.5mm²-4.0mm²:2000V

≥4.0mm²:2500V

Temperature, fixed

-60°C to +200°C (according to DIN EN 50305)

Min. bend radius, fixed

6 x OD

Halogenfree

According to VDE 0472-815

Lead-free

According to 2011/65/EU (RoHs-II/RoHS-III)

NFPA

According to NFPA 79-2018

Oil resistance

According to DIN EN 60811-2-1

PTFE-free

The design of these products does not contain PTFE

PWIS-free

According to VDMA 24364-B2-L

REACH

According to (EC) No. 1907/2006 (REACH)

Laboratories and Test Centers

In our laboratories, we evaluate the long‑term effects of environmental factors — including UV exposure, rain, ozone, seawater, oils, and cleaning agents — on the materials used in our products.

Within our dedicated test facilities, we conduct rigorous performance assessments such as:

  • Electrical transmission and signal integrity verification
  • Service life and endurance testing
  • Continuous load validation under demanding conditions
  • Fire behavior and flame‑resistance analysis

These comprehensive tests directly inform the design and manufacturing of future Anyang® products.  Our multi‑stage validation processes ensure not only compliance with industry standards and legal requirements, but also support our commitment to sustainability and environmental regulations — including REACH and RoHS — through verified material safety and product reliability.



Validated Through Rigorous Testing

Not all tests deliver the same level of assurance.  Only the most demanding evaluations can verify true performance under real‑world conditions.  That is why every product and material undergoes stringent validation in our specialized testing centers.

We assess practicability, durability, and compatibility across diverse application environments—ensuring that each solution meets the precise needs of our customers.  Upholding this commitment is a responsibility we take seriously: to deliver on our promise of consistent, reliable, and high‑quality connectivity.

  • RoHs 2.0

    RoHs 2.0

  • Reach

    Reach

  • ISO 9001

    ISO 9001

  • UL

    UL

  • TÜV

    TÜV

  • VDE

    VDE

Testing video

Speed, Reliability, and Flexibility: The Pillars of Anyang Logistics

In today’s global market, logistics demands speed, reliability, and flexibility—standards that Anyang meets through a state-of-the-art, fully integrated network of logistics and service centers.

Beyond fast and dependable cable shipment, we provide a comprehensive suite of logistics products and services designed to streamline your operations.  Our portfolio includes tailored transport, storage, and unwinding solutions that enable efficient cable handling and integration into your workflow.

These capabilities not only enhance supply chain performance but also drive tangible process efficiencies—helping you stay agile and competitive in a rapidly evolving marketplace.

Packing details

Wooden Roll
Wooden Roll

Roll
Roll

Shipping Package
Shipping Package
