Flexible Ethernet cable EtherCAT ETHERNET/IP Cat.6 SF/UTP 4*2*26AWG

シリアルコード : A0810400 製品コード : Ethernet CAT6

Applications:

High-Flex, Gigabit Industrial Ethernet Cable

  • Gigabit-Ready: Enables fast data exchange with Category 6 performance up to 1 Gbit/s

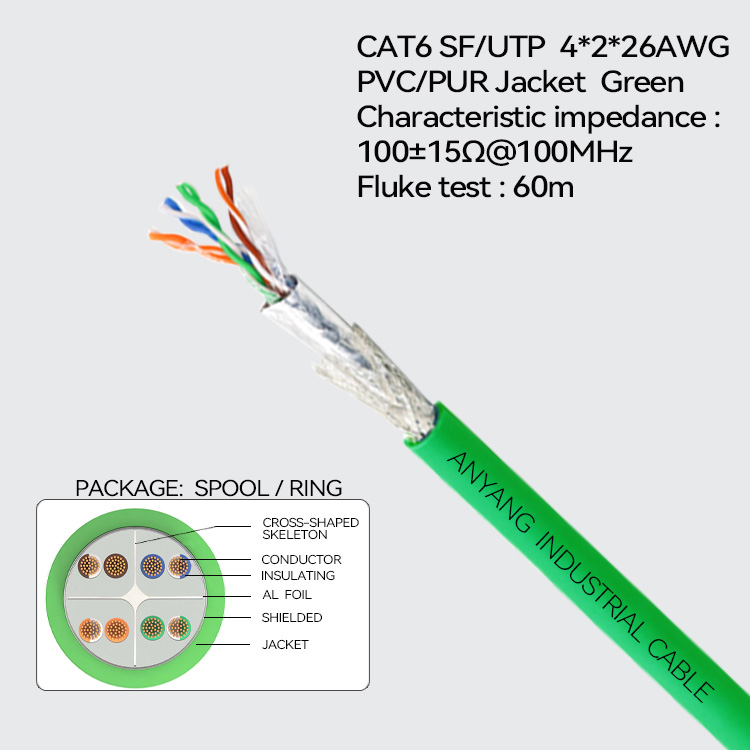

  • Mechanically Robust: Highly flexible design with an integrated cross separator to protect conductor pairs under high mechanical stress

  • Superior EMI Protection: Double-shielded SF/UTP construction—aluminum-laminated foil plus high-coverage copper braid—ensures excellent resistance to electromagnetic interference

Ideal for dynamic automation, robotics, and industrial networks where speed, flexibility, and signal integrity are critical.



Key Properties:

Rated for medium mechanical stress

Suitable for dry and damp indoor environments

PVC outer jacket resists acids, alkaline solutions, and offers limited oil resistance

Compliant with industrial Ethernet standards for reliable data transmission

Ideal for control cabinet wiring, fixed automation networks, and industrial communication systems where consistent signal integrity and environmental durability are required.

Product type

Ethernet cable

Fieldbus cable

Cable type

CAT6 4*2*26#

Nominal voltage

48 V AC rms according to IEC

Rated voltage

50 V AC rms according to IEC

Maximum operating voltage

125 V

Loop resistance at 20°C

280 Ω/km

Nominal characteristic impedance

100±15 Ω

Possible data transmission rates

1000 Mbit/s

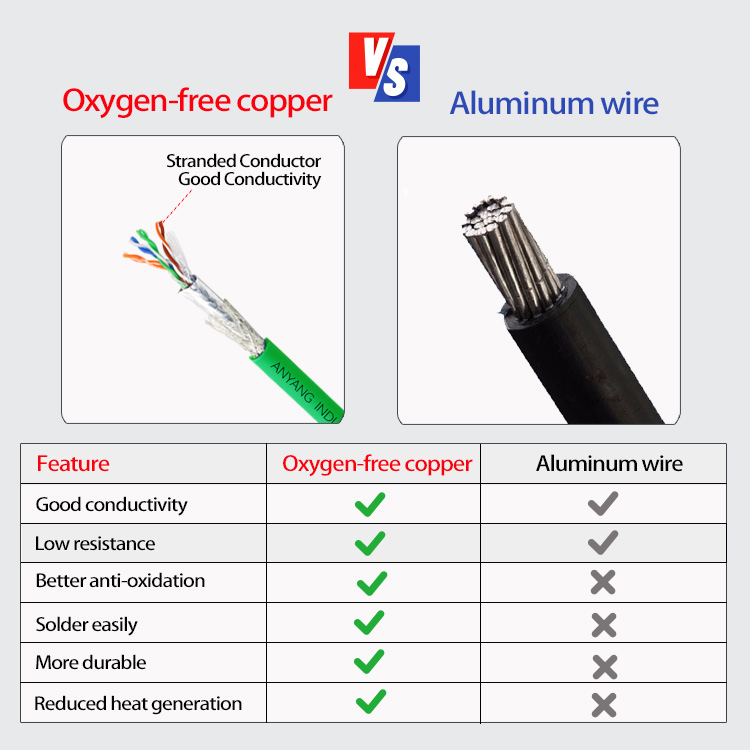

Conductor material

Bare copper

Number of cores

8

Number of pairs

4

Stranding type

Twisted-pair

Shielded

Yes

Core insulation base material

HDPE

Basic material of outer jacket

PVC

PUR

Outer jacket color

Green

Temperature, fixed

-15°C to +70°C (according to DIN EN 50305)

-40°C to +105°C (according to DIN EN 50305)

Temperature, flexible

-5°C to +70°C (according to DIN EN 50305)

-15°C to +80°C (according to DIN EN 50305)

Min. bend radius, fixed

6 x OD

Min. bend radius, flexible

10 x OD

Flame-retardant

No

UV-resistant

No

Halogenfree

No

Oil resistant

No

PWIS-free

Yes

Certification

RoHs 2.0

REACH

Laboratories and Test Centers

In our laboratories, we evaluate the long‑term effects of environmental factors — including UV exposure, rain, ozone, seawater, oils, and cleaning agents — on the materials used in our products.

Within our dedicated test facilities, we conduct rigorous performance assessments such as:

  • Electrical transmission and signal integrity verification
  • Service life and endurance testing
  • Continuous load validation under demanding conditions
  • Fire behavior and flame‑resistance analysis

These comprehensive tests directly inform the design and manufacturing of future Anyang® products.  Our multi‑stage validation processes ensure not only compliance with industry standards and legal requirements, but also support our commitment to sustainability and environmental regulations — including REACH and RoHS — through verified material safety and product reliability.



Validated Through Rigorous Testing

Not all tests deliver the same level of assurance.  Only the most demanding evaluations can verify true performance under real‑world conditions.  That is why every product and material undergoes stringent validation in our specialized testing centers.

We assess practicability, durability, and compatibility across diverse application environments—ensuring that each solution meets the precise needs of our customers.  Upholding this commitment is a responsibility we take seriously: to deliver on our promise of consistent, reliable, and high‑quality connectivity.

  • RoHs 2.0

    RoHs 2.0

  • Reach

    Reach

  • ISO 9001

    ISO 9001

  • UL

    UL

  • TÜV

    TÜV

  • VDE

    VDE

Testing video

Speed, Reliability, and Flexibility: The Pillars of Anyang Logistics

In today’s global market, logistics demands speed, reliability, and flexibility—standards that Anyang meets through a state-of-the-art, fully integrated network of logistics and service centers.

Beyond fast and dependable cable shipment, we provide a comprehensive suite of logistics products and services designed to streamline your operations.  Our portfolio includes tailored transport, storage, and unwinding solutions that enable efficient cable handling and integration into your workflow.

These capabilities not only enhance supply chain performance but also drive tangible process efficiencies—helping you stay agile and competitive in a rapidly evolving marketplace.

Packing details

Wooden Roll
Wooden Roll

Roll
Roll

Shipping Package
Shipping Package
