Fixed Installation Ethernet cable ETHERNET/IP Cat6A S/FTP 4*2*26AWG

シリアルコード : A0810400 製品コード : Ethernet CAT6A

Applications:

Fixed-Installation Industrial Ethernet Cable

  • Suitable for fixed-installation EtherCAT and EtherNET/IP applications

  • Approved for use in dry, damp, or wet interior environments

  • Versatile performance across multiple applications, with options tailored to different jacket materials

Ideal for control cabinets, switch rooms, machinery wiring, and structured industrial networks where reliable, high-speed communication and environmental durability are required.

Key Properties:

High‑Speed, Shielded Industrial Ethernet Cable

  • 10 Gigabit Ready: Supports ultra‑fast data transfer with Category 6A performance up to 10 Gbit/s

  • Superior EMI Shielding: S/FTP construction — individually foil‑shielded pairs plus an overall copper braid — delivers outstanding protection against electromagnetic interference

  • Jacket Options: Available in PVC (versatile, cost‑effective) and PUR (highly durable, oil‑ and abrasion‑resistant) variants

Ideal for data‑intensive industrial networks, backbone cabling, and critical automation systems where speed, noise immunity, and application‑specific durability are essential.

Product type

Ethernet cable

Cable type

CAT6A 4*2*26

Nominal voltage

48 V AC rms according to IEC

Rated voltage

50 V AC rms according to IEC

Maximum operating voltage

125 V

Loop resistance at 20°C

280 Ω/km

Nominal characteristic impedance

100±15 Ω

Possible data transmission rates

10000 Mbit/s

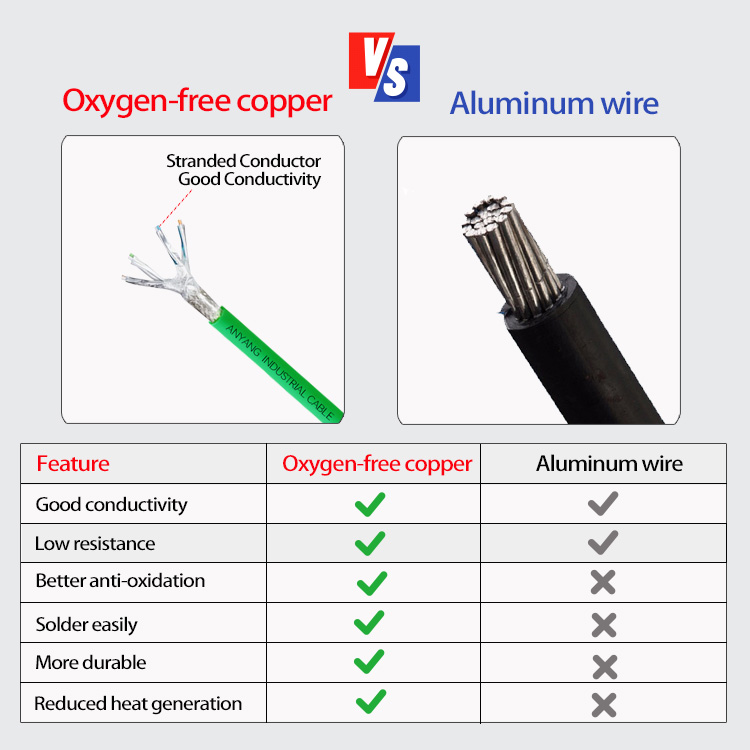

Conductor material

Bare copper

Number of cores

8

Number of pairs

4

Stranding type

Twisted-pair

Shielded

Yes

Core insulation base material

FMPE

Basic material of outer jacket

PVC

PUR

Outer jacket color

Green

Temperature, fixed

-15°C to +70°C (according to DIN EN 50305)

-40°C to +105°C (according to DIN EN 50305)

Temperature, flexible

-5°C to +70°C (according to DIN EN 50305)

-15°C to +80°C (according to DIN EN 50305)

Min. bend radius, fixed

6 x OD

Min. bend radius, flexible

10 x OD

Halogenfree

No

Oil resistant

No

PWIS-free

Yes

Certification

RoHs 2.0

REACH

Laboratories and Test Centers

In our laboratories, we evaluate the long‑term effects of environmental factors — including UV exposure, rain, ozone, seawater, oils, and cleaning agents — on the materials used in our products.

Within our dedicated test facilities, we conduct rigorous performance assessments such as:

  • Electrical transmission and signal integrity verification
  • Service life and endurance testing
  • Continuous load validation under demanding conditions
  • Fire behavior and flame‑resistance analysis

These comprehensive tests directly inform the design and manufacturing of future Anyang® products.  Our multi‑stage validation processes ensure not only compliance with industry standards and legal requirements, but also support our commitment to sustainability and environmental regulations — including REACH and RoHS — through verified material safety and product reliability.



Validated Through Rigorous Testing

Not all tests deliver the same level of assurance.  Only the most demanding evaluations can verify true performance under real‑world conditions.  That is why every product and material undergoes stringent validation in our specialized testing centers.

We assess practicability, durability, and compatibility across diverse application environments—ensuring that each solution meets the precise needs of our customers.  Upholding this commitment is a responsibility we take seriously: to deliver on our promise of consistent, reliable, and high‑quality connectivity.

  • RoHs 2.0

    RoHs 2.0

  • Reach

    Reach

  • ISO 9001

    ISO 9001

  • UL

    UL

  • TÜV

    TÜV

  • VDE

    VDE
