Ethernet cable Flexible PROFINET Type B 6XV1840-3AH10

シリアルコード : A0810100 製品コード : Profinet Type B

Applications:

Designed for flexible installation in PROFINET Type B networks and structured cabling systems compliant with EN 50173 and ISO/IEC 11801. Also fully compatible with EtherCAT and EtherNET/IP applications.

  • Suitable for use in AC and DC charging infrastructures for electromobility

  • Approved for dry and damp indoor environments

  • Supports dynamic routing and occasional flexing in industrial and infrastructure settings

  • Maintains signal integrity in structured, high‑speed communication networks

Ideal for automation, charging systems, and industrial networks where flexibility, standards compliance, and reliable data transmission are required.



Key Properties:

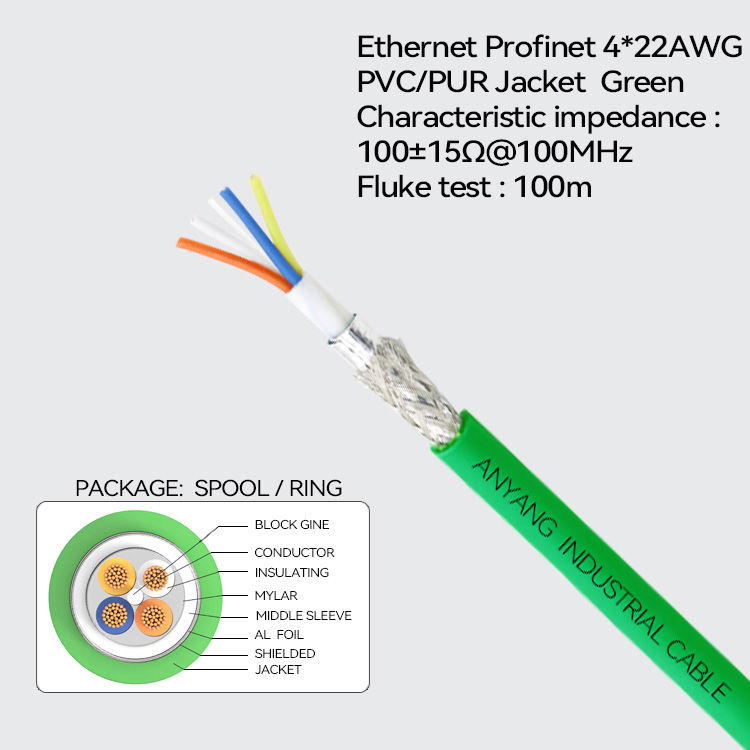

Fast‑Connect Design: Integrated inner jacket and cross separator eliminate pair‑shield removal, dramatically reducing termination time while maintaining full pair‑to‑pair shielding effectiveness.

Power‑over‑Ethernet (PoE) Ready: Delivers simultaneous power and data to low‑energy devices such as IP cameras, wireless access points, and sensors.

High EMI Immunity: Star‑quad conductor layout combined with SF/UTP double shielding (aluminum foil + high‑coverage copper braid) ensures reliable signal integrity in noisy environments.

Category 5/5e Performance: Supports data rates up to 100 Mbit/s and analog/digital signal transmission within a 100 MHz frequency range.

Ideal for industrial networking, surveillance, and automation systems where fast installation, PoE support, and electromagnetic compatibility are critical.



Product type

Ethernet cable

Cable type

Profinet / 4*22#

Nominal voltage

48 V AC rms according to IEC

Rated voltage

50 V AC rms according to IEC

Maximum operating voltage

125 V

Loop resistance at 20°C

280 Ω/km

Nominal characteristic impedance

100±15 Ω

Possible data transmission rates

100 Mbit/s

Conductor material

Tin-plated Copper

Number of cores

4

Shielded

Yes

Core insulation base material

PE

Basic material of outer jacket

PVC

Outer jacket color

Green

Temperature, fixed

-15°C to +70°C (according to DIN EN 50305)

Temperature, flexible

-5°C to +70°C (according to DIN EN 50305)

Min. bend radius, fixed

6 x OD

Min. bend radius, flexible

10 x OD

Flame-retardant

No

UV-resistant

No

Halogenfree

No

Oil resistant

No

PWIS-free

Yes

Certification

RoHs 2.0

REACH
