Flexible Control Cable with Tinned Copper Wire Braid Resistant

シリアルコード : A0210020S 製品コード : Round Cable-RVVP

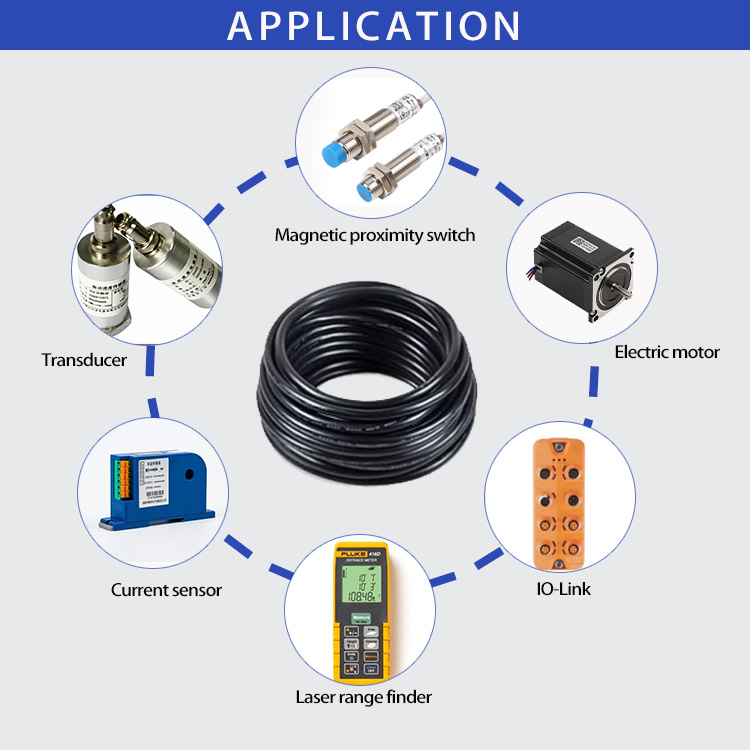

Applications:

This cable is designed for use across a wide range of technical and operational environments, including:

Machine tool production

Complete equipment installation engineering

Power stations

Air-conditioning systems

Heating systems

Refrigeration equipment

Office automation equipment

Data processing systems

Other related industrial, commercial, and infrastructure applications

Its construction ensures reliable performance in fixed installations and controlled dynamic conditions where medium mechanical stress, temperature variations, and standard environmental factors are present.



Key Properties:

Mechanical Strength: Provides durability and resistance to medium mechanical stress.

Electrical Insulation: Ensures reliable signal integrity and safety in power and control applications.

Chemical Resistance: Withstands exposure to oils, alkalis, acids, and other common industrial substances.

EMI/RFI Protection: Dual-shielded construction effectively suppresses electromagnetic and radio frequency interference, supporting stable performance in electrically noisy environments.

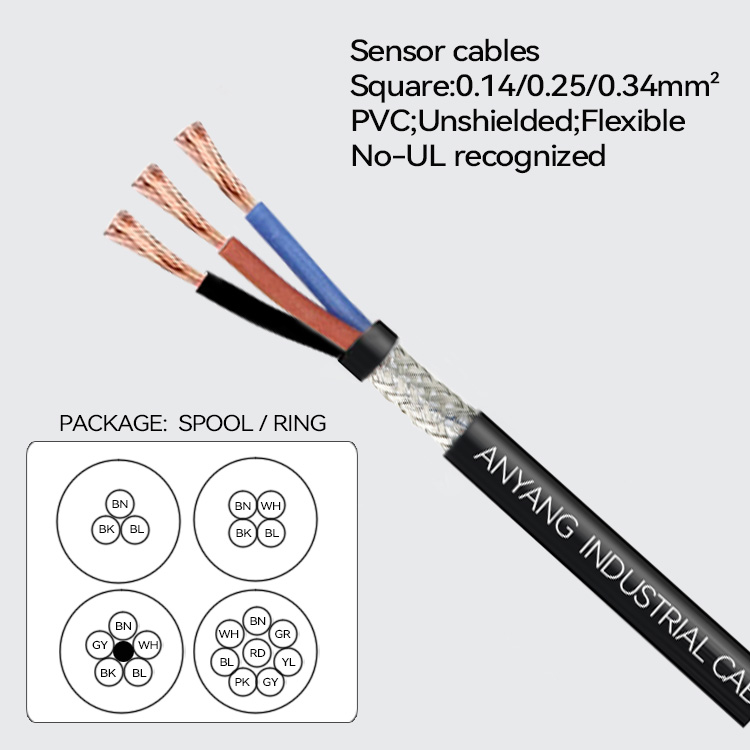

Structure:


Conductor:Copper acc.to GB/T3956 CLASS 6

Insulation:special PVC

Inner liner:PVC tape or aluminum foil shield

Braiding: tinned copper braid

Sheath:70°C PVC

Standards:JB/T8734.5

Conductor material

Tinned Copper (according to DIN EN 60228)

Conductor design

IEC 60228 class 6

Core identification

Numbers

Colors

Core insulation

PVC

Core stranding

Cores wound with an optimised pitch length.

Shielded

Yes

Outer jacket

PVC

Outer jacket color

Black RAL9005

Green RAL6018

Grey RAL7001

Product type

Installation cable

Application area

Fixed Installation

Nominal voltage

<0.5mm²:U0/U 300/300V

0.5mm²-4.0mm²:U0/U 300/500V

≥4.0mm²:U0/U 450/750V

Test voltage

<0.5mm²:1500V

0.5mm²-4.0mm²:2000V

≥4.0mm²:2500V

Temperature, fixed

-15°C to +70°C (according to DIN EN 50305)

Min. bend radius, fixed

6 x OD

Flame retardant

According to IEC 60332-1-2, Cable Flame, VW-1, FT1, FT2/Horizontal Flame

Lead-free

According to 2011/65/EU (RoHs-II/RoHS-III)

NFPA

According to NFPA 79-2018

PTFE-free

The design of these products does not contain PTFE

PWIS-free

According to VDMA 24364-B2-L

REACH

According to (EC) No. 1907/2006 (REACH)

Silicone-free

According to PV 3.10.7 – status 1992
