Silicone wire cable insulated strands 0.6/1 kV -60~200℃

シリアルコード : A0610010 製品コード : Silicone wire

Applications:

These 0.6/1 kV insulated conductors are designed for use in a variety of demanding applications, including:

  • Switchboards and distribution panels
  • Industrial furnaces
  • Textile machinery
  • Railway systems and rolling stock
  • Battery systems and energy storage connections

Their robust insulation and rated voltage support reliable, safe performance in both power distribution and specialized industrial environments.



Key Properties:

Halogen‑Free, High‑Performance Cable – PFAS‑Free

  • Halogen‑Free – Eliminates toxic and corrosive fumes in case of fire

  • Heat Resistant – Maintains performance at elevated operating temperatures

  • Flexible at Low Temperatures – Remains pliable and easy to install in cold environments

  • PFAS‑Free – Manufactured without per‑ and polyfluoroalkyl substances, supporting environmental and regulatory compliance

Ideal for applications requiring clean combustion, thermal durability, installation versatility, and modern material standards—such as industrial control systems, public infrastructure, and cold‑climate installations.

Conductor material

Tinned Copper (according to DIN EN 60228)

Conductor design

IEC 60228 class 6

Core identification

Numbers

Colors

Shielded

No

Outer jacket

Silicone

Outer jacket color

Black RAL9005

Green RAL6018

Grey RAL7001

Orange RAL2003

White RAL9003

Product type

Single conductor cable

Application area

Fixed Installation

Nominal voltage

<0.5mm²:U0/U 300/300V

0.5mm²-4.0mm²:U0/U 300/500V

≥4.0mm²:U0/U 450/750V

Test voltage

<0.5mm²:1500V

0.5mm²-4.0mm²:2000V

≥4.0mm²:2500V

Temperature, fixed

-60°C to +200°C (according to DIN EN 50305)

Temperature, flexible

-5°C to +70°C (according to DIN EN 50305)

Min. bend radius, fixed

6 x OD

Flame retardant

According to IEC 60332-1-2, Cable Flame, VW-1, FT1, FT2/Horizontal Flame

Halogenfree

According to VDE 0472-815

Lead-free

According to 2011/65/EU (RoHs-II/RoHS-III)

NFPA

According to NFPA 79-2018

Oil resistance

According to DIN EN 60811-2-1

PTFE-free

The design of these products does not contain PTFE

PWIS-free

According to VDMA 24364-B2-L

REACH

According to (EC) No. 1907/2006 (REACH)

UL certification

UL e-file number: E497459

cUL certification

cUL e-file number: E497459

Laboratories and Test Centers

In our laboratories, we evaluate the long‑term effects of environmental factors — including UV exposure, rain, ozone, seawater, oils, and cleaning agents — on the materials used in our products.

Within our dedicated test facilities, we conduct rigorous performance assessments such as:

  • Electrical transmission and signal integrity verification
  • Service life and endurance testing
  • Continuous load validation under demanding conditions
  • Fire behavior and flame‑resistance analysis

These comprehensive tests directly inform the design and manufacturing of future Anyang® products.  Our multi‑stage validation processes ensure not only compliance with industry standards and legal requirements, but also support our commitment to sustainability and environmental regulations — including REACH and RoHS — through verified material safety and product reliability.



Validated Through Rigorous Testing

Not all tests deliver the same level of assurance.  Only the most demanding evaluations can verify true performance under real‑world conditions.  That is why every product and material undergoes stringent validation in our specialized testing centers.

We assess practicability, durability, and compatibility across diverse application environments—ensuring that each solution meets the precise needs of our customers.  Upholding this commitment is a responsibility we take seriously: to deliver on our promise of consistent, reliable, and high‑quality connectivity.

  • RoHs 2.0

    RoHs 2.0

  • Reach

    Reach

  • ISO 9001

    ISO 9001

  • UL

    UL

  • TÜV

    TÜV

  • VDE

    VDE

Testing video

Speed, Reliability, and Flexibility: The Pillars of Anyang Logistics

In today’s global market, logistics demands speed, reliability, and flexibility—standards that Anyang meets through a state-of-the-art, fully integrated network of logistics and service centers.

Beyond fast and dependable cable shipment, we provide a comprehensive suite of logistics products and services designed to streamline your operations.  Our portfolio includes tailored transport, storage, and unwinding solutions that enable efficient cable handling and integration into your workflow.

These capabilities not only enhance supply chain performance but also drive tangible process efficiencies—helping you stay agile and competitive in a rapidly evolving marketplace.

Packing details

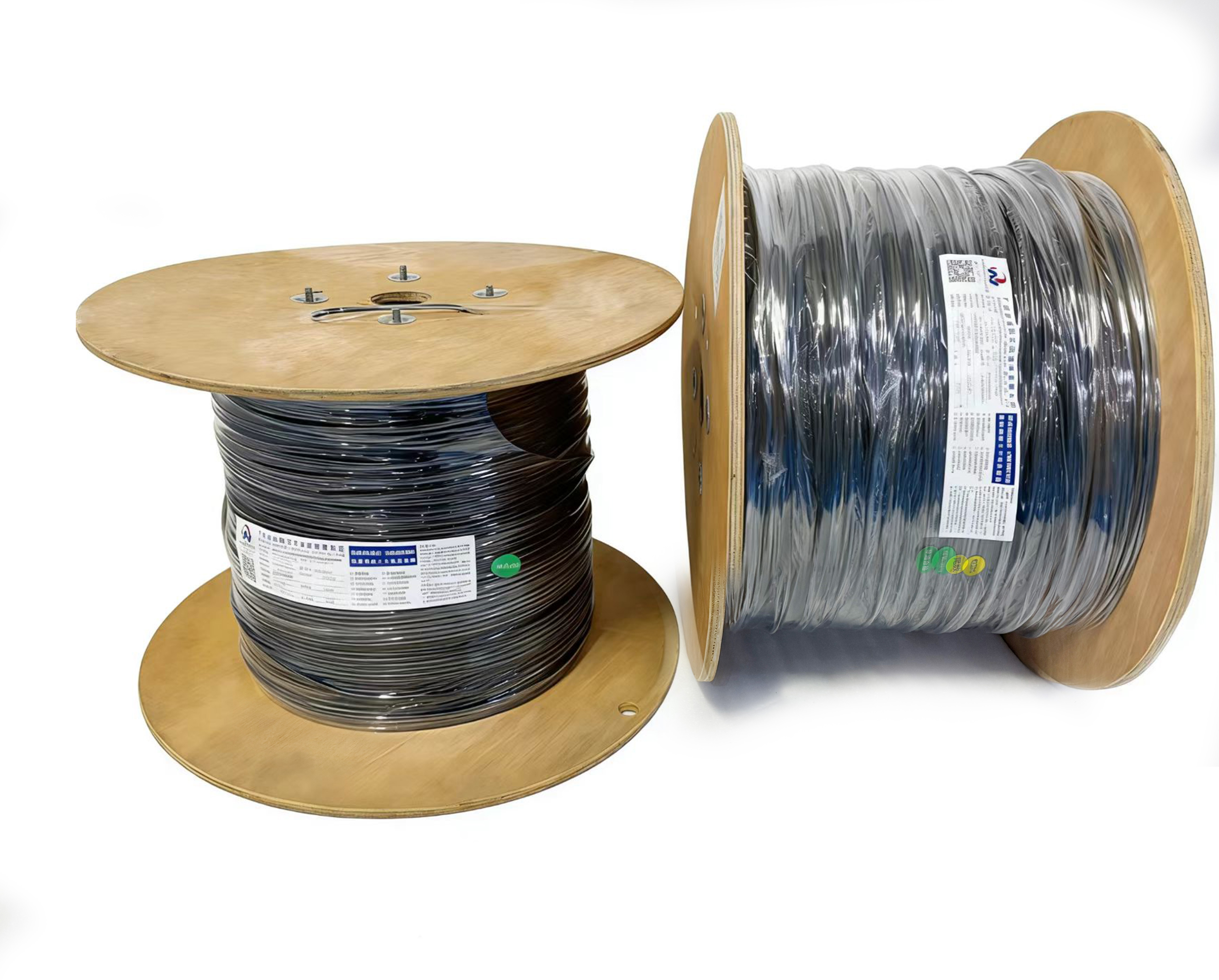

Wooden Roll
Wooden Roll

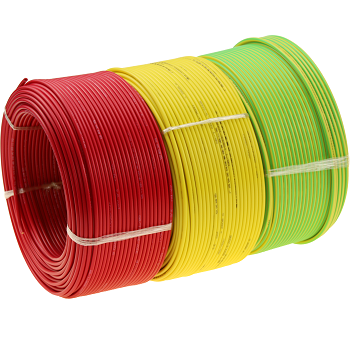

Roll
Roll

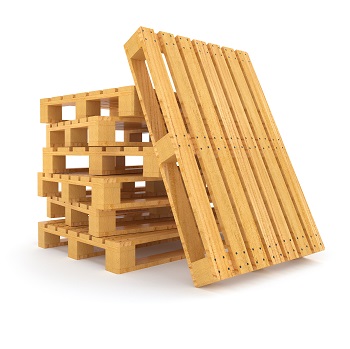

Shipping Package
Shipping Package
