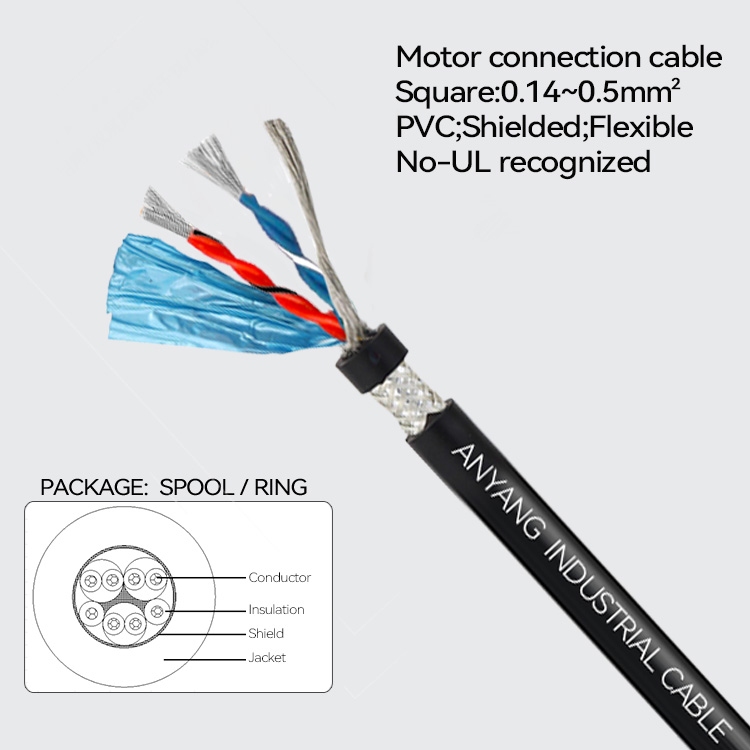

Copper Conductor Encoder Cables Connecting Encoders Control Cable

シリアルコード : A0310030S 製品コード : Encoder cable-PVC

Applications:

Compatible with rotary encoder systems from leading manufacturers.

Available in various shielding variants for ideal protection against electromagnetic interference.

Featuring a double-layer tinned copper shield for superior EMI/RFI protection, this cable is designed for precision measurement, detection, and control applications. It is suitable for use in:

  • Machine tool manufacturing
  • Complete equipment installation engineering
  • Power stations
  • Heating and air‑conditioning systems
  • Refrigeration units
  • Office automation equipment
  • Related data processing (DP) systems

The enhanced shielding ensures signal integrity and reliable performance in electrically noisy and demanding industrial environments.



Key Properties:

Featuring outstanding heat and flame resistance, excellent electrical insulation, and stable chemical performance, this cable utilizes advanced PVC compounds to enhance transmission reliability. The construction incorporates a dual‑shield design—combining aluminum foil and copper braid—to effectively suppress electromagnetic interference (EMI) and ensure signal integrity in demanding industrial environments.

Designed specifically to connect servo motor feedback systems to frequency converters, this cable is engineered for environments where electromagnetic compatibility (EMC) is critical.

Its highly flexible construction supports continuous flexing in moving machine components and cable carriers, ensuring reliable signal transmission and long‑term durability in dynamic automation systems.

Conductor material

Tinned Copper (according to DIN EN 60228)

Conductor design

IEC 60228 class 6

Core identification

Colors

Core insulation

PVC

Core stranding

Cores wound with an optimised pitch length.

Shielded

Yes

Outer jacket

PVC

Outer jacket color

Black RAL9005

Green RAL6018

Product type

Encoder cable

Motor connection cable

Power and control cable

Application area

Flexible

Fixed Installation

Nominal voltage

<0.5mm²:U0/U 300/300V

0.5mm²-4.0mm²:U0/U 300/500V

≥4.0mm²:U0/U 450/750V

Test voltage

<0.5mm²:1500V

0.5mm²-4.0mm²:2000V

≥4.0mm²:2500V

Temperature, fixed

-15°C to +70°C (according to DIN EN 50305)

Temperature, flexible

-5°C to +70°C (according to DIN EN 50305)

Min. bend radius, fixed

6 x OD

Min. bend radius, flexible

10 x OD

Flame retardant

According to IEC 60332-1-2, Cable Flame, VW-1, FT1, FT2/Horizontal Flame

Lead-free

According to 2011/65/EU (RoHs-II/RoHS-III)

NFPA

According to NFPA 79-2018

PTFE-free

The design of these products does not contain PTFE

PWIS-free

According to VDMA 24364-B2-L

REACH

According to (EC) No. 1907/2006 (REACH)

Silicone-free

According to PV 3.10.7 – status 1992
