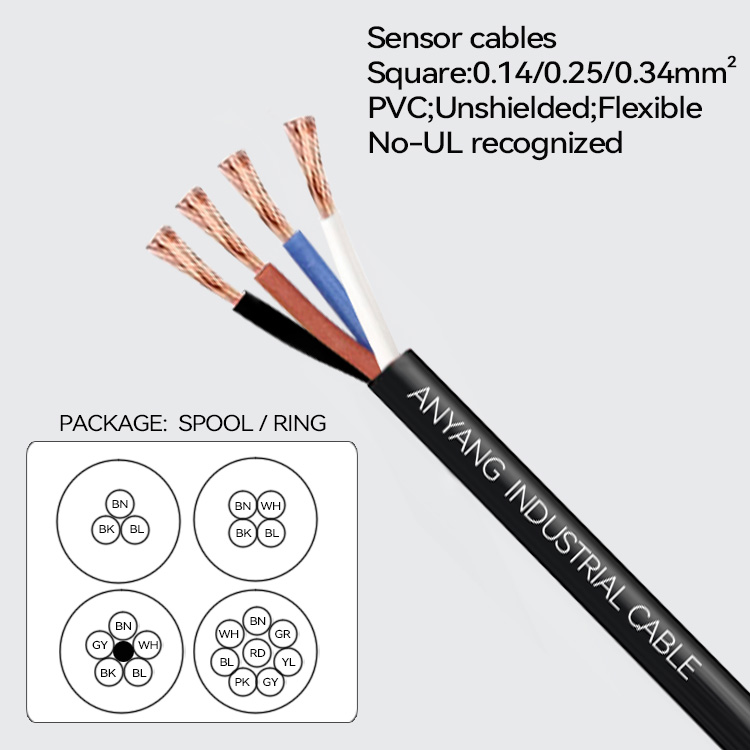

Flexible Sensor cable Actuator cable TPU / PUR jacket

シリアルコード : A0510010 製品コード : Sensor cable-TPU

Applications:

Versatile Machine Interface Cable for Low‑Frequency Data & Signal Transmission

Designed for universal use at machine interfaces, this cable supports reliable data and signal transmission across a wide range of low‑frequency applications.



Key Properties:

  • Suitable for fixed installation and occasional flexing

  • Approved for use in dry and damp environments

  • Rated for medium mechanical stress

  • PUR outer jacket resists acids, alkaline solutions, and provides limited oil resistance

  • Suitable for outdoor use within the specified temperature range

Ideal for industrial control systems, sensor networks, and equipment interfaces where durability, chemical resistance, and reliable low‑frequency communication are required in varied environmental conditions.

Conductor material

Bare Copper (according to DIN EN 60228)

Conductor design

IEC 60228 class 6

Core identification

Colors

Core insulation

PP

PVC

TPE

Core stranding

Cores wound with an optimised pitch length.

Shielded

No

Outer jacket

TPU

Outer jacket color

Black RAL9005

Green RAL6018

Orange RAL2003

Product type

Encoder cable

Installation cable

Motor connection cable

Power and control cable

Robotic cable

Application area

Flexible

Cable chain

Torsion

Nominal voltage

<0.5mm²:U0/U 300/300V

0.5mm²-4.0mm²:U0/U 300/500V

Test voltage

<0.5mm²:1500V

0.5mm²-4.0mm²:2000V

Temperature, fixed

-40°C to +105°C (according to DIN EN 50305)

Temperature, flexible

-5°C to +70°C (according to DIN EN 50305)

Min. bend radius, fixed

6 x OD

Min. bend radius, flexible

10 x OD

Flame retardant

According to IEC 60332-1-2, Cable Flame, VW-1, FT1, FT2/Horizontal Flame

Halogenfree

According to VDE 0472-815

Lead-free

According to 2011/65/EU (RoHs-II/RoHS-III)

NFPA

According to NFPA 79-2018

Oil resistance

According to DIN EN 60811-2-1

PTFE-free

The design of these products does not contain PTFE

PWIS-free

According to VDMA 24364-B2-L

REACH

According to (EC) No. 1907/2006 (REACH)

Silicone-free

According to PV 3.10.7 – status 1992
