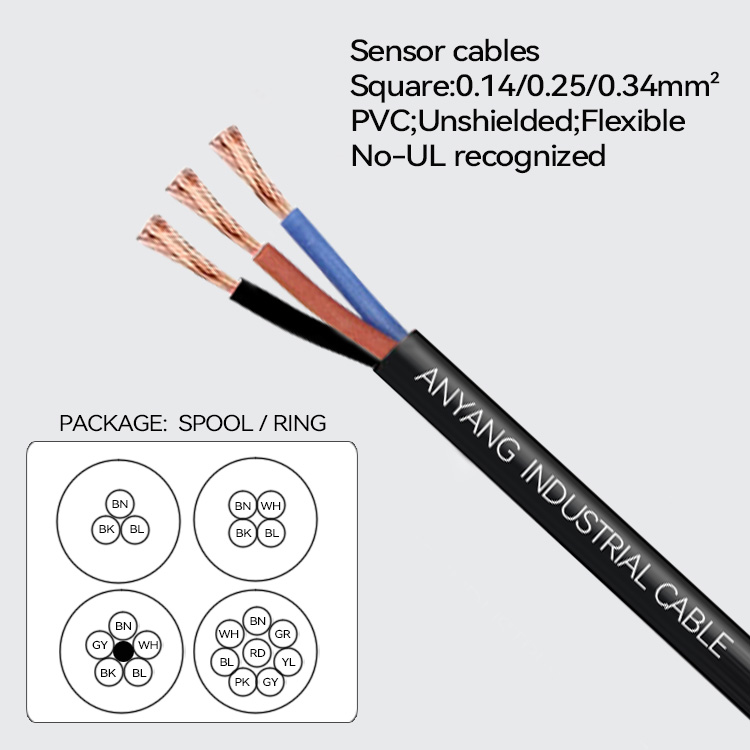

Flexible Sensor cable Actuator cable PVC jacket

シリアルコード : A0510010 製品コード : Sensor / Actuator cable-PVC

Applications:

Designed for reliable data and signal transmission in continuously moving systems, this cable supports flexible use in dynamic machine parts and within cable carriers.



Key Properties:

Suitable for fixed installation and occasional flexing

Approved for dry and damp indoor environments

Rated for medium mechanical stress

PVC outer jacket resists acids, alkaline solutions and offers limited oil resistance

Suitable for outdoor use within the specified temperature range

Ideal for industrial control, sensor wiring, and equipment interfaces where durability, environmental resistance, and reliable low‑frequency communication are required.

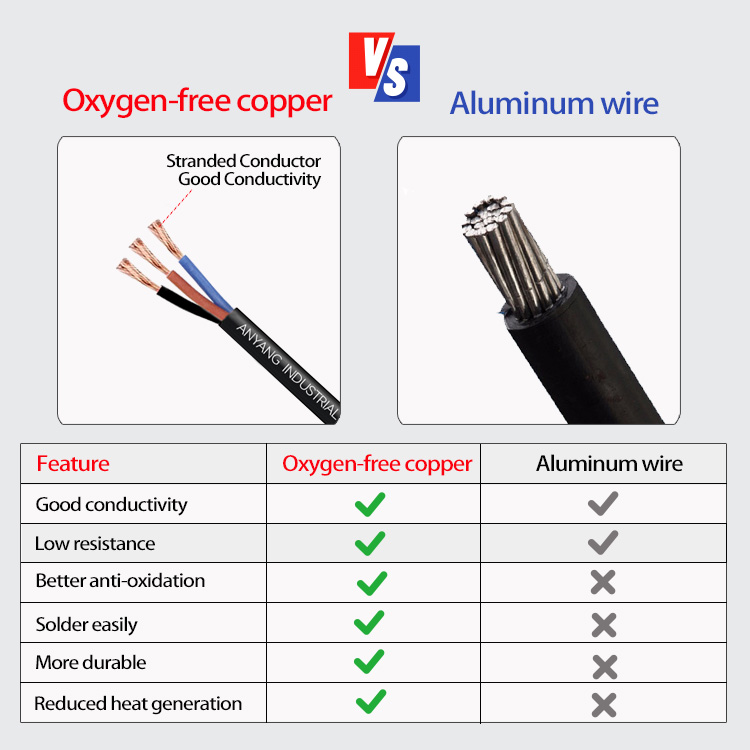

Conductor material

Bare Copper (according to DIN EN 60228)

Conductor design

IEC 60228 class 6

Core identification

Colors

Core insulation

PVC

Core stranding

Cores wound with an optimised pitch length.

Shielded

No

Outer jacket

PVC

Outer jacket color

Black RAL9005

Grey RAL7001

Product type

Motor connection cable

Power and control cable

Robotic cable

Application area

Flexible

Fixed Installation

Cable chain

Nominal voltage

<0.5mm²:U0/U 300/300V

0.5mm²-4.0mm²:U0/U 300/500V

≥4.0mm²:U0/U 450/750V

Test voltage

<0.5mm²:1500V

0.5mm²-4.0mm²:2000V

Temperature, fixed

-15°C to +70°C (according to DIN EN 50305)

Temperature, flexible

-5°C to +70°C (according to DIN EN 50305)

Min. bend radius, fixed

6 x OD

Min. bend radius, flexible

10 x OD

Flame retardant

According to IEC 60332-1-2, Cable Flame, VW-1, FT1, FT2/Horizontal Flame

Halogenfree

According to VDE 0472-815

Lead-free

According to 2011/65/EU (RoHs-II/RoHS-III)

NFPA

According to NFPA 79-2018

PTFE-free

The design of these products does not contain PTFE

PWIS-free

According to VDMA 24364-B2-L

REACH

According to (EC) No. 1907/2006 (REACH)

Silicone-free

According to PV 3.10.7 – status 1992
